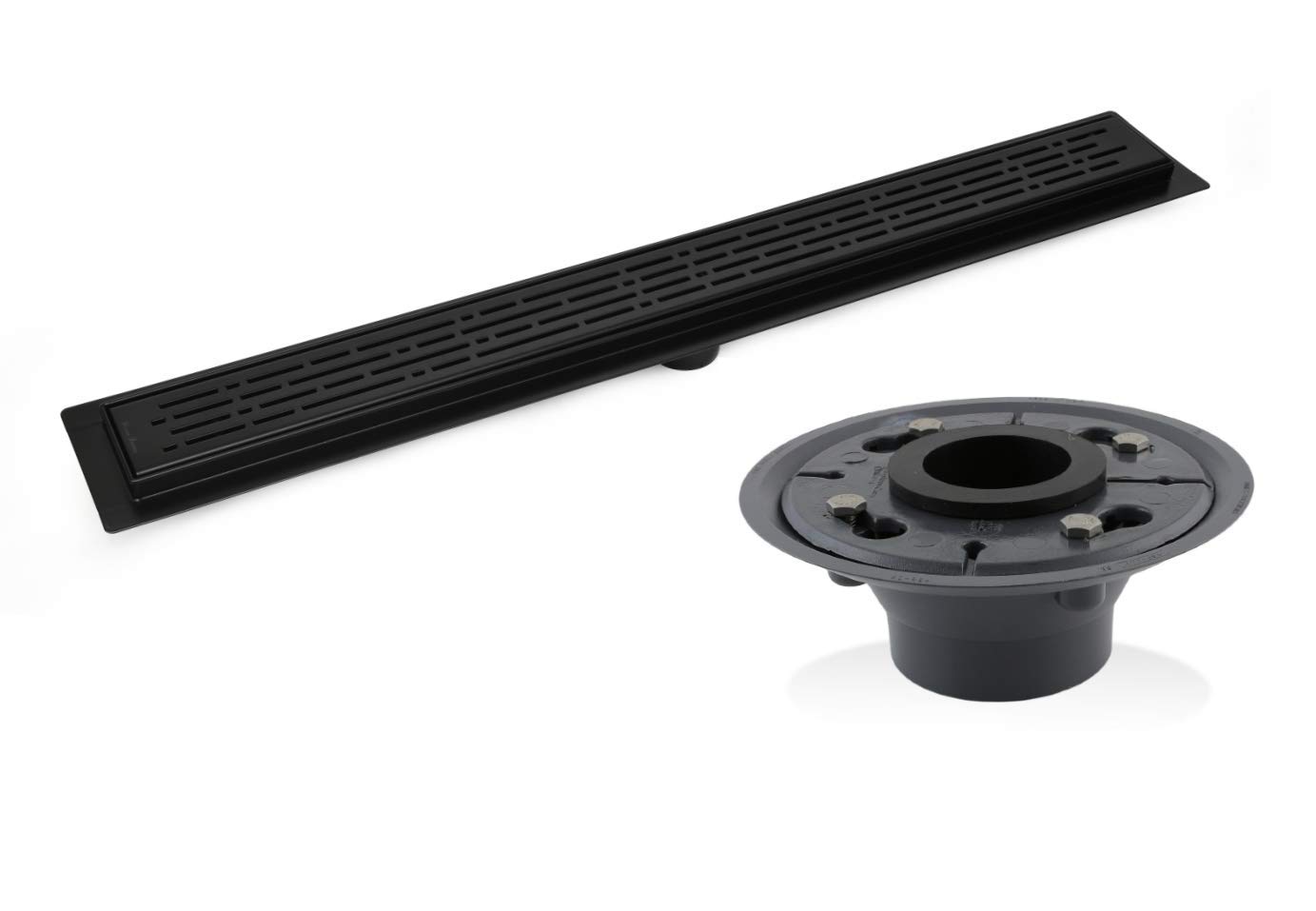

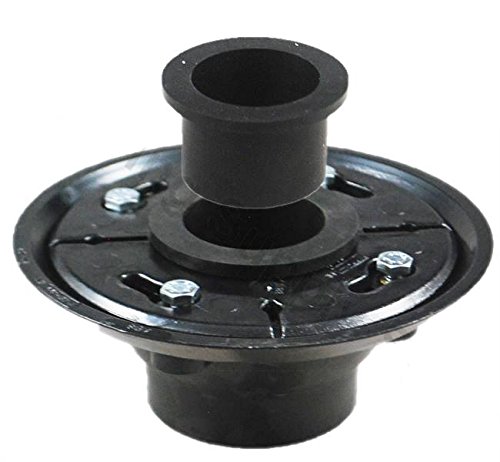

Linear Drain Set. 2 Items Bundle: SereneDrains Matte Black Linear Shower Drain (Broken Lane Design), 2 inch ABS shower drain base flange for shower linear drains. Drain Includes: 100% stainless steel channel body & grate, drain rubber gasket, puller key, waterproofing membrane sheet around the drain flange (not require but included), Installation Instruction.Available Size: 16", 24", 30", 35", 39", 47", 59" .Features:Electro polished finish. Bodies are fully welded and leak tested prior to dispatch.2 Inch diameter central vertical outlet, designed to be installed into any 2" shower drain flange.Compatible with tiles up to 10mm depth (14mm lip).Pre-Slope channel. Channel width: 2 3/4" (70 mm).Serene Drains are sized to match standard 1/2", 1", 2, and 4" tile without cutting.Drain grade is 16 gauge 304 stainless steel.Flow rate: at entrance of shower - 6.3GPM (0.4 l/s); against the wall - 9.5GPM (0.6 l/s).Flange body edge designed for use with all types of waterproofing: hot mop, painted or liquid membranes, sheet membrane, vinyl waterproofing etc. Hair and debris strainer NOT included. Dimensions: Length 15 3/4" x 2 3/4" (400mm) Intake sq. in: 12.38. Length 23 1/2" x 2 3/4" (600mm) Intake sq. in: 14.96. Length 30" x 2 3/4" (732mm) Intake sq. in: 17.62. Length 35 3/8" x 2 3/4" (900mm) Intake sq. in: 20.03. Length 39 3/8" x 2 3/4" (1000mm) Intake sq. in: 21.12. Length 47 1/4" x 2 3/4" (1200mm) Intake sq. in: 26.68. Length 59" x 2 3/4" (1500mm) Intake sq. in: 31.67.
